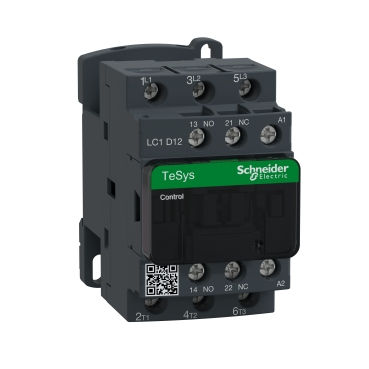

LC1D12M7

LC1D12M7

SKU: 101
$13.00Price
LC1D12M7 - schneider
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 220 V AC coil
In Stock : 13
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh)
Quantity

  • Specifications

    Range of product TeSys Deca
    product or component type Contactor
    Device short name LC1D
    contactor application Resistive load
    Motor control
    Utilisation category AC-4
    AC-1
    AC-3
    AC-3e
    Poles description 3P
    [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
    Power circuit: <= 300 V DC
    [Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    [Uc] control circuit voltage 220 V AC 50/60 Hz

  • Complementary

    Motor power kW 3 kW at 220...230 V AC 50/60 Hz (AC-3)
    5.5 kW at 380...400 V AC 50/60 Hz (AC-3)
    5.5 kW at 415...440 V AC 50/60 Hz (AC-3)
    7.5 kW at 500 V AC 50/60 Hz (AC-3)
    7.5 kW at 660...690 V AC 50/60 Hz (AC-3)
    3.7 kW at 400 V AC 50/60 Hz (AC-4)
    3 kW at 220...230 V AC 50/60 Hz (AC-3e)
    5.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
    5.5 kW at 415...440 V AC 50/60 Hz (AC-3e)
    7.5 kW at 500 V AC 50/60 Hz (AC-3e)
    7.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
    Motor power hp 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors
    2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
    3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
    3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
    7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
    10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
    Compatibility code LC1D
    Pole contact composition 3 NO
    Protective cover With
    [Ith] conventional free air thermal current 25 A (at 60 °C) for power circuit
    10 A (at 60 °C) for signalling circuit
    Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947
    140 A AC for signalling circuit conforming to IEC 60947-5-1
    250 A DC for signalling circuit conforming to IEC 60947-5-1
    Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit
    210 A 40 °C - 1 s for power circuit
    30 A 40 °C - 10 min for power circuit
    61 A 40 °C - 1 min for power circuit
    100 A - 1 s for signalling circuit
    120 A - 500 ms for signalling circuit
    140 A - 100 ms for signalling circuit
    Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1
    40 A gG at <= 690 V coordination type 1 for power circuit
    25 A gG at <= 690 V coordination type 2 for power circuit
    Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
    Power dissipation per pole 0.36 W AC-3
    1.56 W AC-1
    0.36 W AC-3e
    [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1
    Power circuit: 600 V CSA certified
    Power circuit: 600 V UL certified
    Signalling circuit: 690 V conforming to IEC 60947-1
    Signalling circuit: 600 V CSA certified
    Signalling circuit: 600 V UL certified
    Overvoltage category III
    Pollution degree 3
    [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947

  • Environmental

    Standards CSA C22.2 No 14
    EN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    UL 508
    IEC 60335-1
    Product certifications GL
    BV
    DNV
    LROS (Lloyds register of shipping)
    RINA
    UL
    CCC
    CSA
    GOST
    UKCA
    CB
    IP degree of protection IP20 front face conforming to IEC 60529
    Protective treatment TH conforming to IEC 60068-2-30
    Climatic withstand Conforming to IACS E10 exposure to damp heat
    conforming to IEC 60947-1 Annex Q category D exposure to damp heat
    Permissible ambient air temperature around the device -40…60 °C
    60…70 °C with derating
    Operating altitude 0...3000 m
    Fire resistance 850 °C conforming to IEC 60695-2-1
    Flame retardance V1 conforming to UL 94
    Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz)
    Vibrations contactor closed (4 Gn, 5...300 Hz)
    Shocks contactor open (10 Gn for 11 ms)
    Shocks contactor closed (15 Gn for 11 ms)
    Height 77 mm
    Width 45 mm
    Depth 86 mm
    net weight 0.325 kg
