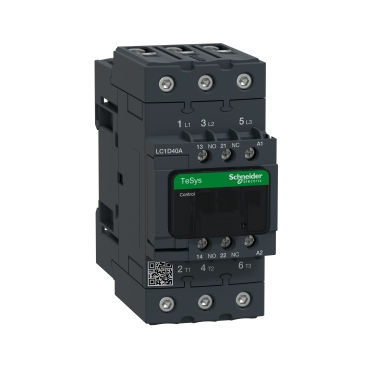

LC1D40AM7

LC1D40AM7

SKU: TR
$47.02Price
LC1D40AM7 - SCHNEIDER
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 220 V AC 50/60 Hz coil
In Stock
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Quantity

  • Specifications

    Range TeSys
    TeSys Deca
    Range of product TeSys Deca
    product or component type Contactor
    Device short name LC1D
    contactor application Resistive load
    Motor control
    Utilisation category AC-4
    AC-1
    AC-3
    AC-3e
    Poles description 3P
    [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
    Power circuit: <= 300 V DC
    [Ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    [Uc] control circuit voltage 220 V AC 50/60 Hz

  • Complementary

    Motor power kW 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
    11 kW at 220...230 V AC 50/60 Hz (AC-3)
    22 kW at 415...440 V AC 50/60 Hz (AC-3)
    22 kW at 500 V AC 50/60 Hz (AC-3)
    30 kW at 660...690 V AC 50/60 Hz (AC-3)
    9 kW at 400 V AC 50/60 Hz (AC-4)
    18.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
    11 kW at 220...230 V AC 50/60 Hz (AC-3e)
    22 kW at 415...440 V AC 50/60 Hz (AC-3e)
    22 kW at 500 V AC 50/60 Hz (AC-3e)
    30 kW at 660...690 V AC 50/60 Hz (AC-3e)
    Motor power hp 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
    10 hp at 230/240 V AC 50/60 Hz for 3 phases motors
    30 hp at 575/600 V AC 50/60 Hz for 3 phases motors
    10 hp at 200/208 V AC 50/60 Hz for 3 phases motors
    3 hp at 115 V AC 50/60 Hz for 1 phase motors
    30 hp at 460/480 V AC 50/60 Hz for 3 phases motors
    Compatibility code LC1D
    Pole contact composition 3 NO
    Protective cover With
    [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit
    60 A (at 60 °C) for power circuit
    Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1
    250 A DC for signalling circuit conforming to IEC 60947-5-1
    800 A at 440 V for power circuit conforming to IEC 60947
    Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current 320 A 40 °C - 10 s for power circuit
    720 A 40 °C - 1 s for power circuit
    72 A 40 °C - 10 min for power circuit
    165 A 40 °C - 1 min for power circuit
    100 A - 1 s for signalling circuit
    120 A - 500 ms for signalling circuit
    140 A - 100 ms for signalling circuit
    Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1
    80 A gG at <= 690 V coordination type 1 for power circuit
    80 A gG at <= 690 V coordination type 2 for power circuit
    Average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit
    Power dissipation per pole 2.4 W AC-3
    5.4 W AC-1
    2.4 W AC-3e
    [Ui] rated insulation voltage Power circuit: 600 V CSA certified
    Power circuit: 600 V UL certified
    Signalling circuit: 690 V conforming to IEC 60947-1
    Signalling circuit: 600 V CSA certified
    Signalling circuit: 600 V UL certified
    Power circuit: 690 V conforming to IEC 60947-4-1
    Overvoltage category III
    Pollution degree 3
    [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
    Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
    B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    Mechanical durability 6 Mcycles
    Electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
    1.5 Mcycles 40 A AC-3 at Ue <= 440 V
    1.5 Mcycles 40 A AC-3e at Ue <= 440 V
    Control circuit type AC at 50/60 Hz standard

  • Environmental

    Standards CSA C22.2 No 14
    EN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    UL 508
    IEC 60335-1
    Product certifications CCC
    GOST
    UL
    CSA
    IP degree of protection IP20 front face conforming to IEC 60529
    Protective treatment TH conforming to IEC 60068-2-30
    Climatic withstand Conforming to IACS E10 exposure to damp heat
    conforming to IEC 60947-1 Annex Q category D exposure to damp heat
    Permissible ambient air temperature around the device -40…60 °C
    60…70 °C with derating
    Operating altitude 0...3000 m
    Fire resistance 850 °C conforming to IEC 60695-2-1
    Flame retardance V1 conforming to UL 94
    Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz)
    Vibrations contactor closed (4 Gn, 5...300 Hz)
    Shocks contactor closed (15 Gn for 11 ms)
    Shocks contactor open (10 Gn for 11 ms)
    Height 122 mm
    Width 55 mm
    Depth 120 mm
    net weight 0.85 kg
