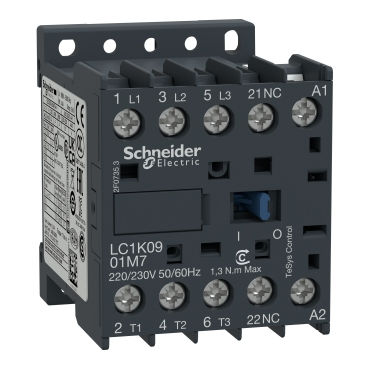

LC1K0901M7
SKU: TR
$15.78Price
LC1K0901M7 - scheinder
TeSys K contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 220...230 V AC coil
stock : 22Description
Provides reliability and durability for standard applications for operating rates up to 600 rpm and environments up to 50°C Very compact (45 mm wide), DIN rail mounting or screw fixing Multi standard certified (IEC, UL, CSA, CCC , EAC), Green Premium compliant (RoHS/REACh).
- eSys K is a compact contactor series with a wide range of coil voltages and terminal connection options.
- The offer includes special versions for railway (TeSys S207) and electric home (TeSys S335) applications.
- One of the smallest contactor offerings on the market.
- The series offers powerful performance for its compact size and promises seamless integration in all applications.
- It is widely used for industrial, infrastructure and building applications.
Specifications Main
Main
sherry TeSys Product or component type Contactor Product group LC1K device application Control contactor application Motor control
Resistance loadComplement
Usage category AC-3
AC-3e
AC-1
AC-4Definition of pole 3P power pole contact composition 3 NA [Ue] nominal operating voltage Power circuit: <= 690 V AC <= 400 Hz
Signaling circuit: <= 690 V AC <= 400 Hz[Ie] rated operating current 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
20 A (at <60 °C) at <= 690 V AC AC-1 for power circuitcontrol circuit type AC at 50/60 Hz control circuit voltage 220...230V AC 50/60Hz engine power kW 2.2 kW at 220...230 V AC 50/60 Hz AC-3
4 kW at 380...415 V AC 50/60 Hz AC-3
4 kW at 440/690 V AC 50/60 Hz AC-3
2.2 kW at 220...230 V AC 50/60 Hz AC-3e
4 kW at 380...415 V AC 50/60 Hz AC-3e
4 kW at 440/690 V AC 50/60 Hz AC-3e
2.2 kW at 220...230 V AC 50/60 Hz AC-4
4 kW at 380...415 V AC 50/60 Hz AC-4
4 kW at 440/690 V AC 50/60 Hz AC-4auxiliary contact arrangement 1 NK [Uimp] rated impulse withstand voltage 8 kV overvoltage category III [Ith] classical open air thermal current 20 A (at 60 °C) for power circuit
10 A (at 50 °C) for signaling circuitIrms nominal closing capacity 110 A AC for power circuit conforming to IEC 60947
110 A AC for signaling circuit conforming to IEC 60947rated breaking capacity 110 A at 220...230 V conforming
to
IEC
60947
to IEC 60947
70 A at 660...690 V conforming to IEC 60947[Icw] rated short-time withstand current 90 A 50 °C - 1 s for power circuit
85 A 50 °C - 5 s for power circuit
80 A 50 °C - 10 s for power circuit
60 A 50 °C - 30 s for power circuit
45 A 50 °C - 1 min for power circuit
40 A 50 °C - 3 min for power circuit
20 A 50 °C - >= 15 min for power circuit
80 A - 1 s for signalling circuit
90 A - 500 ms for signalling circuit
110 A - 100 ms for signalling circuitrelevant insurance value 25 A gG at <= 440 V for power circuit
25 A aM for power circuit
10 A gG for signalling circuit conforming to IEC 60947
10 A gG for signalling circuit conforming to VDE 0660average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit insulation resistance > 10 MOhm for signaling circuit Take-off power in VA 30 VA (at 20 °C) Holding power consumption in VA 4.5 VA (at 20 °C) heat distribution 1.3W control circuit voltage limits Working: 0.8...1.15 Uc (at <50 °C)
Drop: >= 0.20 Uc (at <50 °C)connections - terminals Screw clamp terminals 1 wire(s) 1.5…4 mm²solid
Screw clamp terminals 1 wire(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 1 wire(s) 0.34…2.5 mm²flexible with
Screw clamp terminals 2 wire(s) 1.5…4 mm²solid
Screw clamp terminals 2 wire(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 2 wire(s) 0.34…1.5 mm²flexible withMaximum operating speed 3600 cyc/h auxiliary contact type type instant 1 NK signaling circuit frequency <= 400Hz minimum switching current 5 mA for signaling circuit minimum switching voltage 17 V for signaling circuit Working hours 10...20 msec coil de-energization and NO opening
10...20 msec coil energization and NO closingsecurity reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1non-overlap distance 0.5mm Mechanical durability 10 Mcycles electrical resistance 1.3 Mcycles 9 A AC-3 at Ue <= 440 V
1.3 Mcycles 9 A AC-3e at Ue <= 440 V
0.16 Mcycles 20 A AC-1 at Ue <= 690 V
0, <= 440 V at 02 Mcycles 54 A AC-4 Uemechanical strength Shocks, contactor closed, X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks, contactor closed, Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27
Shocks, contactor closed, Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Height 58mm Width 45mm Depth 57mm Environment
Environment
standards EN/IEC 60947-4-1
GB/T 14048.4
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40: Annex JJ
UL 60335-2-40:Annex JJProduct certificates CB Scheme
CCC
UL
CSA
EAC
CE
UKCApreventive maintenance TC conforming to IEC 60068
TC conforming to DIN 50016working height Without 2000m Flame retardant V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102Packing Units
Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5,000 cm Package 1 Width 6,200 cm Package 1 Length 6,500 cm Package 1 Weight 177,500g Unit Type of Package 2 S02 Number of Units in Package 2 50 Package 2 Height 15,000 cm Package 2 Width 30,000 cm Package 2 Length 40,000 cm Package 2 Weight 9,132 kg Unit Type of Package 3 P06 Number of Units in Package 3 800 Package 3 Height 75,000 cm Package 3 Width 80,000 cm Package 3 Length 60,000 cm Package 3 Weight 154,160 kg
