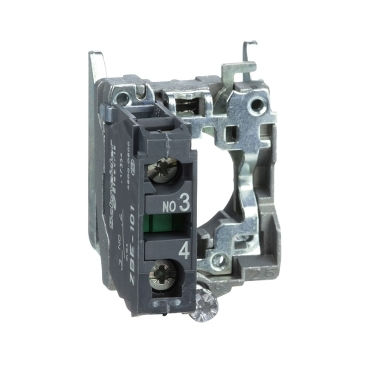

ZB4BZ101 - SCHNEIDER
Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO, screw clamp terminal
In Stock
Description
This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Quantity

  • Specifications

    Range of Product Harmony XB4
    Product or Component Type Complete body/contact assembly
    Device short name ZB4
    Fixing collar material Zamak
    Sale per indivisible quantity 1
    Head type Standard
    Contacts type and composition 1 NO
    Contact operation Slow-break
    Contact block type Single
    Device Composition Fixing collar
    Body
    Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

  • Complementary

    CAD overall width 1.18 in (30 mm)
    CAD overall height 1.85 in (47 mm)
    CAD overall depth 1.46 in (37 mm)
    Terminals description ISO n°1 (13-14)NO
    Net Weight 0.12 lb(US) (0.053 kg)
    Contacts usage Standard contacts
    Positive opening Without
    Operating travel 0.10 in (2.6 mm) NO changing electrical state)
    0.17 in (4.3 mm) total travel)
    Operating force 2.3 N NO changing electrical state
    Operating torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
    Mechanical durability 5000000 cycles
    Tightening torque 7.08…10.62 lbf.in (0.8…1.2 N.m) IEC 60947-1
    Shape of screw head Cross Philips no 1
    Cross pozidriv No 1
    Slotted flat Ø 4 mm
    Slotted flat Ø 5.5 mm
    Contacts material Silver alloy (Ag/Ni)
    Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
    [Ith] conventional free air thermal current 10 A IEC 60947-5-1
    [Ui] rated insulation voltage 600 V 3)IEC 60947-1
    [Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
    [Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1
    6 A 120 V, AC-15, A600 IEC 60947-5-1
    0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
    0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
    1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Electrical durability 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
    Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    device presentation Basic sub-assemblies

  • Environmental

    protective treatment TH
    Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
    Ambient air temperature for operation -40…158 °F (-40…70 °C)
    IP degree of protection IP20 IEC 60529
    Standards CSA C22.2 No 14
    IEC 60947-5-1
    UL 508
    JIS C8201-5-1
    IEC 60947-5-4
    IEC 60947-5-5
    IEC 60947-1
    JIS C8201-1
    Product Certifications BV
    GL
    UL
    DNV
    CSA
    LROS (Lloyds register of shipping)
    Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
    Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
